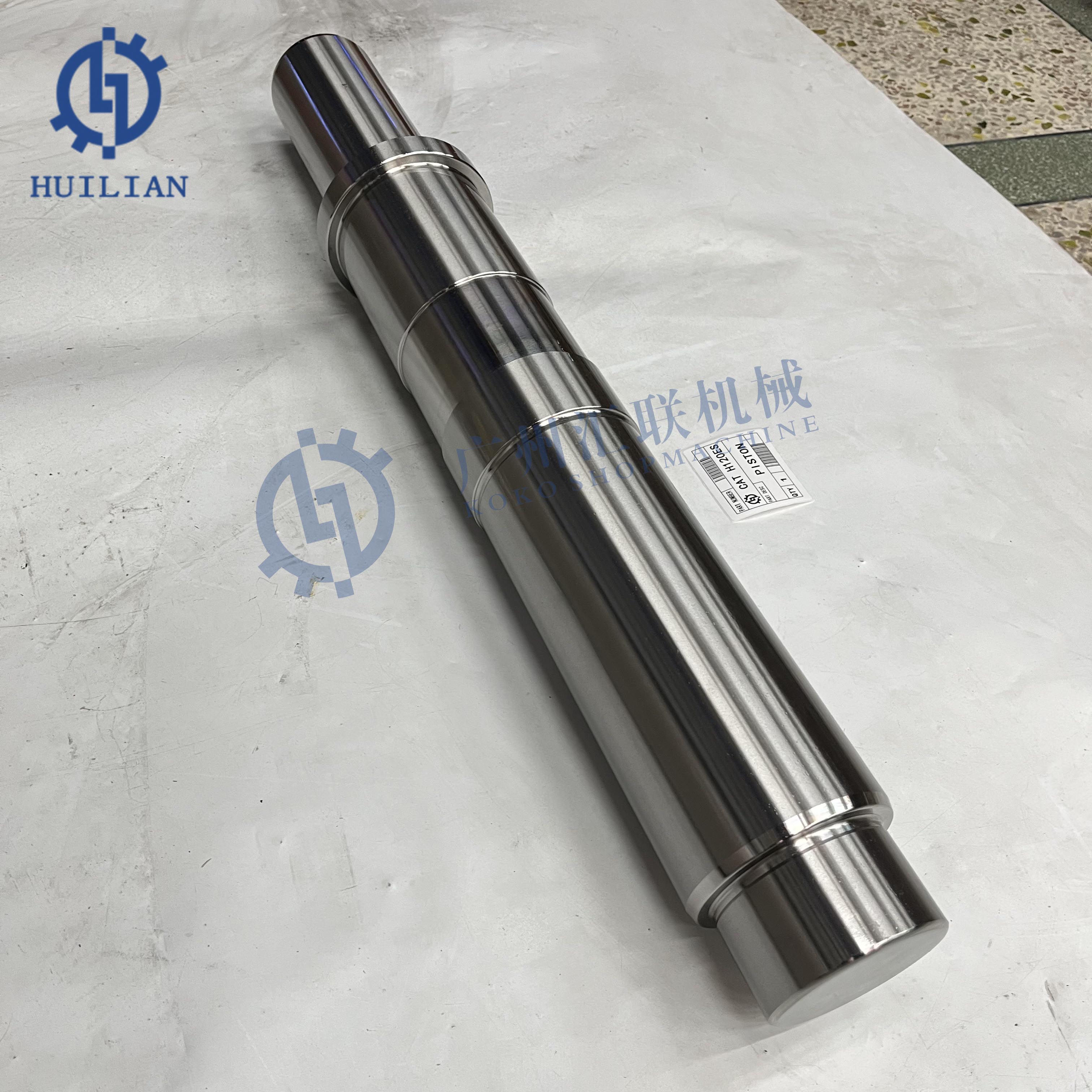

H120-ES H120 ES 366-5136 Breaker Piston H120ES H120E H120CS H130S H160S Hammer Piston for Hydraulic Breaker Parets(we can supply all range of excavator parts: WhatsApp +8618028661021)
Product Description H120ES
The H120ES hammer has built-in features like automatic shut-off to protect your
equipment from poor operation techniques or the occasional mistake.
It's designed for a maximum carrier weight of 59500 lb (26989 kg) and has a tool shaft diameter of 4.7 inches.
The maximum operating pressure is 2176 psi.
The H120ES model is part of the E series hammers, which feature an innovative look with
a newly designed, symmetrical housing. The hammer can be rotated 180° front-to-back, compensating for wear.
The H120ES model has a weight of 1860 kg, a number of blows ranging from 350-620
per minute, a total length of 1839 mm, a tool diameter of 119.5 mm, and an oil flow of 100 l/min.
H120ES Excavator Models
315D, 319D, 320D, M315D, M316D, M318D, M322D, 321D CR, 323D, 324D, 329D
Specifications
| Longer spanlifedur ability |
| Powerful impact strick |
| Suitable for most hydraulic hammer breaker |
| Hardness:about 6065 HRC |
| Production:produced by CNCL athetoen sure the dimension sprecisely |
| Quality:good wear resistance |
CAET H120CS Model Parts
| 3Q-7780 | 3E-6725 | 117-0255 |
| 3Q-7822 | 3E-6726 | 3N-8462 |
| 3Q-7861 | 3E-6731 | 132-7335 |
| 117-0260 | 3E-6739 | 4D-9986 |
| 117-0261 | 5W-5491 | 116-8190 |
| 095-1731 | 3E-6718 | 117-0254 |
| 3E-6702 | 142-5943 | 117-0256 |
| 133-5462 | 120-7345 | 117-0258 |
| 3E-6713 | 3E-6706 | 117-0259 |
| 3Q-7749 | | |
Hydraulic Breaker Hammer Parts
| Piston | Chisel | Piston Ring | Through Bolt |
| Lower Bushing | Moil Chisel | Upper Bushing | Lock Pin |
| Front Head | Breaker Cylinder | Through Bolt | Back Head |
| Diaphragm | Rod Pin | Thrust Bushing | Seal Kit |
| Accumulator | Control Valve | Gas Charging Kit | Gas Bottle |
| Front Head | Breaker Cylinder | Through Bolt | Back Head |
| Diaphragm | Rod Pin | Thrust Bushing | Seal Kit |
| Accumulator | Control Valve | Gas Charging Kit | Upper Bushing |
| Flat Chisel | Side Bolt | V Wedge Chisel | Universal Chisel |
| Rubber Pad | H Wedge Chisel | Charging Valve | |
FAQ
1.Is that the main body customized?
Sure.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance to guarantee
buyer's property.
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from oversea for 10 years since 2010.So we have enough ability to deal with any cxs. OEM certifiCATEEEEEEEEEEEEe is available to provided .
5.What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Which countries have you been exported recently?
Canada, Australia, Peru, Brazil, Mexico, South Africa, etc.
7. Are you sure that your product will fit my excavator?
Our product can be adapted to different excavators. Show me your model number, and we can give you best match products
8. How about the packing of the goods?
Standard export package, wood cxs, or as customers' demands.
